GENERATOR SERVICE
Wind turbine generator bearing replacement
Northon replaces wind-turbine generator bearings directly in the nacelle. The service covers work-area preparation, controlled disassembly of the bearing assembly, inspection of accessible mating surfaces, installation of the new bearing and documentation of the completed work.
- Up-tower work
- Controlled installation
- Service documentation
02 / GENERATOR SERVICE
When should wind-turbine generator bearing replacement be considered?
Bearing replacement is planned on the basis of diagnostic results, service observations and the manufacturer's documentation. Increased vibration, unusual temperature, noise, lubrication issues or wear found during inspection may justify further assessment, but they do not by themselves confirm that replacement is required.
Before mobilisation, we review the generator type, bearing arrangement, nacelle access, required tooling and related tasks. This allows the work method to be prepared for the actual turbine and project conditions.
Preparation and removal
Replacement starts with controlled access to the bearing assembly.
Before work begins, the turbine and work area are secured and tooling is selected for the generator design. Covers and front-end components are removed in a planned sequence to protect the shaft, windings and mating surfaces.
Each stage is documented. Once the assembly is exposed, the bearing, seals, housing and shaft surfaces are inspected so the repair scope can be confirmed before new components are installed.
03
Technical scope
Generator bearing replacement scope
The exact sequence depends on generator type, bearing location and whether the repair is approved for up-tower execution.
- bearing and installation-part identification
- system isolation and clean work-zone preparation
- controlled removal of coupling, guards and access parts
- bearing removal using the specified mechanical or thermal method
- shaft, housing, seal and mating-part inspection
- installation, lubrication, reassembly and final checks
Installation and verification
Temperature, fit and installation cleanliness remain under full control.
The new bearing is prepared in line with the required procedure using controlled heating and dedicated installation tooling. This reduces the risk of damage to raceways, rolling elements and seating surfaces.
After assembly, we verify installation, locking features and generator operating conditions. Acceptance may include temperature and vibration checks and a functional test in accordance with turbine documentation and the agreed project scope.
05Delivery method
How is a wind-turbine generator bearing replaced?
The work follows an agreed method, the documentation applicable to the generator and the conditions of the specific project. The stages are recorded, and components directly affected by the intervention are checked after installation.
- 01
Verification
Confirm the part, tools, removal method and work conditions.
- 02
Removal
Remove components in sequence while protecting mating surfaces.
- 03
Installation
Install the new bearing, seals and required auxiliary parts.
- 04
Acceptance
Check assembly, coupling, lubrication and agreed functional tests.
Documentation
What the customer receives
- replacement-part identification
- stage photographs
- shaft and housing inspection results
- installation and post-repair recommendations
Diagnostics and service decision
Symptoms of generator bearing damage
Generator-bearing issues may present as increased vibration, a change in noise, higher temperature, deteriorating lubrication condition or irregular generator operation. These symptoms must be assessed together with measurements, operating history and manufacturer requirements.
Available reports, alarms, measurements and previous interventions are reviewed when the scope is prepared. This helps distinguish a bearing issue from alignment, coupling or other drivetrain-related causes.
Scope planning
What determines the scope and cost of generator bearing replacement?
A quotation is prepared for the specific generator and actual work scope. The bearing arrangement, removal method, nacelle access, lifting and heating equipment, number of turbines and required post-installation checks all affect the scope. We therefore review the technical data before defining the service.
- generator type and bearing arrangement
- removal scope and required tooling
- number of turbines, location and access
- measurement and final-reporting requirements
Northon / Europe
Generator bearing replacement in Poland and Europe
Northon's mobile teams perform wind-turbine generator bearing replacements in Poland and other European countries. Scope, equipment, schedule and reporting are agreed for the specific wind farm and project documentation. The service can be combined with diagnostics, coupling checks and generator-to-gearbox laser alignment where required.
Preparing an enquiry
What information should be provided for a quotation?
Complete information helps us select the work method, tooling and team before mobilisation. If full documentation is not yet available, send the basic project data and photographs of the nameplates; we will identify the additional information needed to confirm the scope.
- turbine manufacturer and model
- generator manufacturer, type and designation
- bearing designation and location
- symptoms and diagnostic history
- previous repair or disassembly scope
- available technical documentation
- wind-farm location and number of turbines
- requested service date
Northon / Bearing replacement

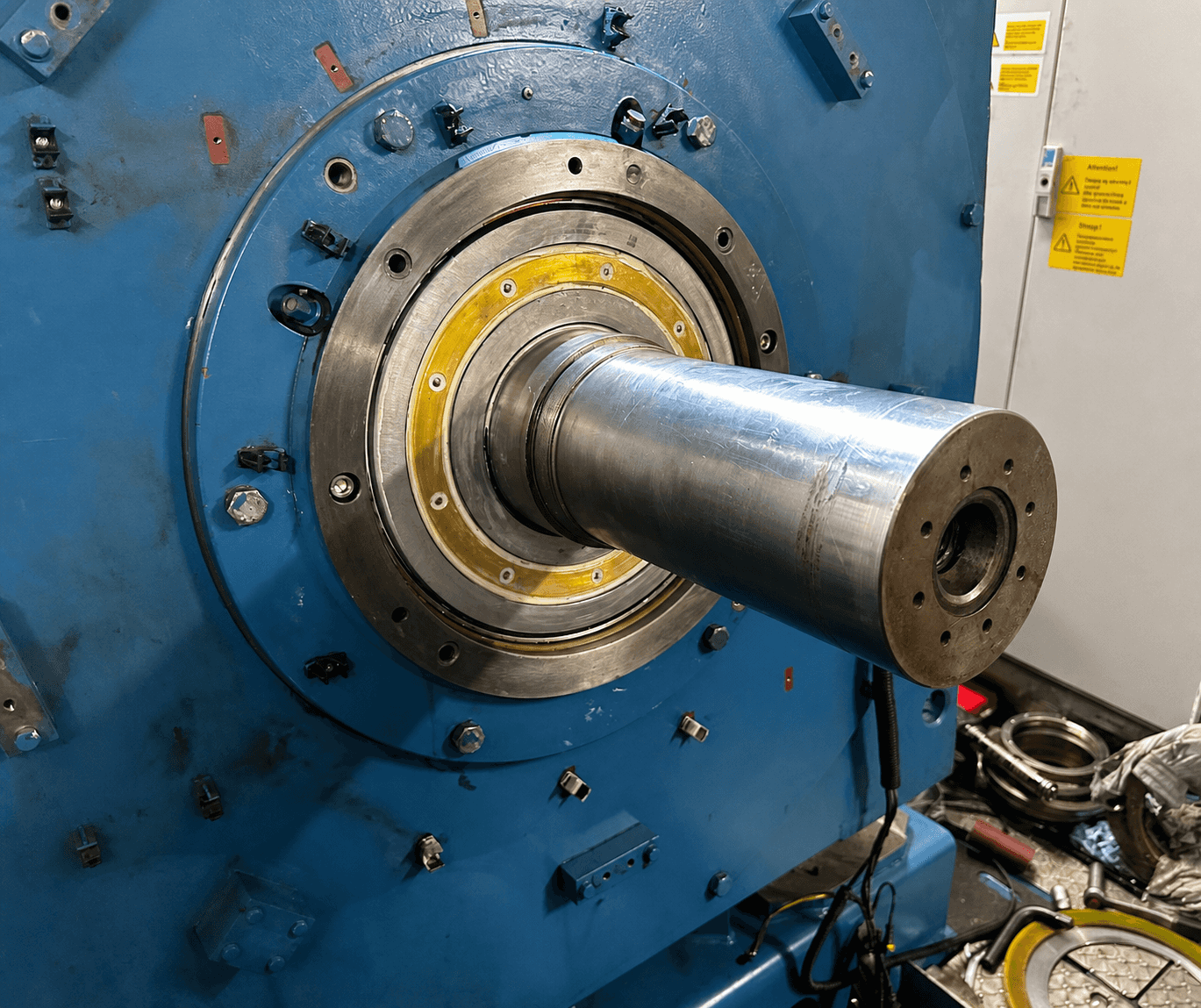

Generator bearing replacement in practice.
Project documentation shows work-area preparation, generator disassembly, inspection of mating surfaces and installation of a new bearing inside the wind-turbine nacelle.
E-E-A-T / Northon
On-turbine mechanical service experience
Technical review: Northon mechanical service team
FAQ
Frequently asked questions
What does wind-turbine generator bearing replacement involve?
The service covers work-area preparation, controlled removal of bearing-system components, inspection of accessible mating surfaces, installation in accordance with the applicable documentation, and completion checks and reporting.
When should generator bearing replacement be considered?
The decision is based on diagnostics, operating history, observed symptoms and manufacturer requirements. Vibration, temperature, noise, lubrication issues or inspection findings may prompt further assessment.
What are common symptoms of generator bearing damage?
Possible symptoms include increased vibration and temperature, a change in noise, lubrication abnormalities and visible wear. Their significance must be confirmed by measurement and technical review.
Can the bearing be replaced directly in the nacelle?
The up-tower method depends on the generator design, access, component mass and the project-approved work method. We assess feasibility after reviewing the technical data.
Are seals and mating components replaced as well?
Accessible components are checked within the agreed disassembly scope. Replacement of seals or additional parts is defined by the documentation, project scope and findings during the work.
Should alignment be checked after generator bearing replacement?
An alignment check may be required after drivetrain intervention. The need and tolerances depend on manufacturer documentation and the actual work scope. Northon can provide laser generator-to-gearbox alignment as a related service.
How is generator bearing replacement documented?
The report can include completed activities, photographs, agreed inspection results and details of installed parts. The required reporting format is agreed before the project.
What determines the cost of generator bearing replacement?
The cost depends on the generator design, removal method, tooling, number of turbines, location and required checks. A quotation is prepared after the technical data has been reviewed.
Does Northon replace generator bearings outside Poland?
Yes. Northon's mobile teams deliver projects in Poland and other European countries, subject to the agreed technical scope, location and schedule.
What information is needed for a quotation?
Please provide turbine and generator data, bearing identification, symptoms, diagnostic results, available documentation, wind-farm location, number of turbines and the requested service date.
